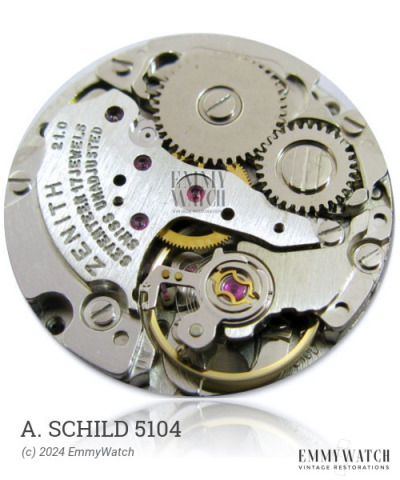

A. Schild 5104
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 58 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1954-
Diameter: 23.3 mm
Height: 5.07 mm
Hands: 1.30 x 0.85 x 0.20 mm
Base: Rolex 1210
The A. Schild 5104 watch movement was introduced in 1954 and includes several notable features. It is a manual wind movement with a sweep seconds hand and a calendar function. The movement incorporates a Breguet hairspring and an escapement wheel in Kif-Duofix combined settings. Additionally, it is equipped with KIF Shock Protection, ensuring durability and reliability.
The A. Schild 5104 features the following functions:
- Calendar
- Date
- KIF Shock Protection
- Manual Winding
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.095 x 320 x 9.0 mm | GR4113 | Manual | Buy mainspring |
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
