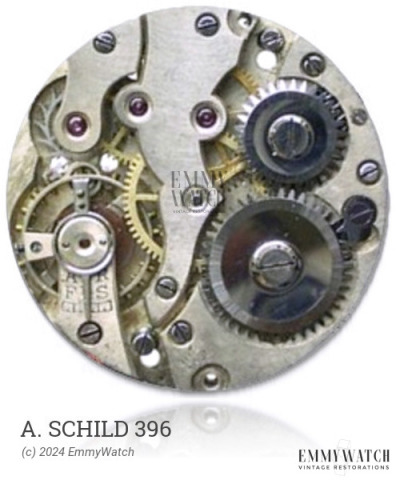

A. Schild 396
(AS, A Schild)
Ligne: 13'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.2 mm
Hands: 1.50 x 0.80 / 0.21 mm
The A. Schild 396 watch movement, also known as the Wehrmachtswerk (Germany Military Movement), is part of a series of movements including the 1560, 1561, 1589, 1594, 1606, 1609, 1616, 1617, 1618, 1623, 1648, and 1697. The specific differences between these movements are not known. The A. Schild 396 movement is a manual wind movement with a sub-second function. It was commonly used in watches around the year 1960.
The A. Schild 396 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.135 x 340 x 11.0 mm | GR3758 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
