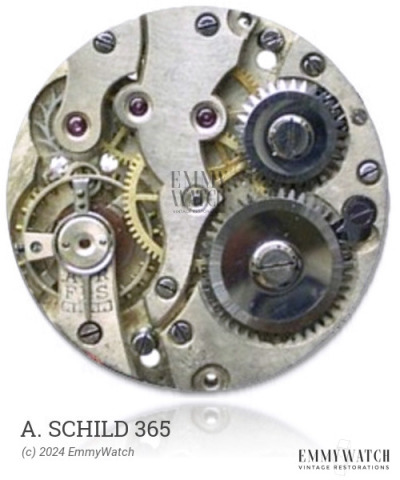

A. Schild 365
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 26 mm
Height: 4.8 mm
Hands: 1.80 x 1.30 x 0.20 mm
The A. Schild 365 is a mechanical watch movement that features a unique design in which the train and hand gears are driven separately by the barrel. It is a manual wind movement with a sweep second function. The day function can be set by +/-24h, while the date function can be quickly set by reverse setting. The A. Schild 365 movement was commonly used around the period of 1970.
The A. Schild 365 features the following functions:
- Date: quickset by reverse setting
- Day: set by +/-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
