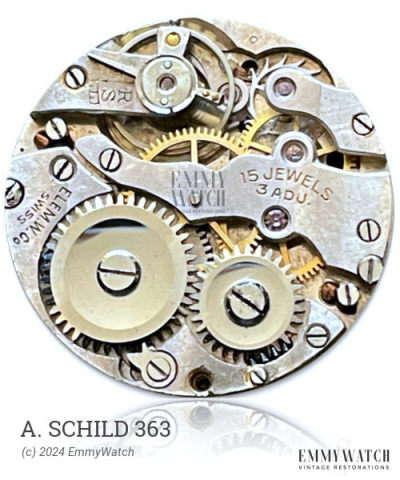

A. Schild 363
(AS, A Schild)
Ligne: 15'''
Jewels: 16/17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 33.85 mm
Height: 3.4 mm
Hands: 1.60 x 1.00 / 0.18 mm
Base: Cyma Tavannes 21
The A. Schild 363 watch movement is a hunter calibre with functions such as stem winding and setting, sub seconds, an adjustable Stud Holder, shock protection, and automatic winding. The movement can be dated to around 1955. The specific differences between the 504 and 506 models are currently unknown.
The A. Schild 363 features the following functions:
- Adjustable Stud Holder
- Automatic Winding
- Shock Protection
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.170 x 350 x 13.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
