A. Schild 347
(AS, A Schild)
Ligne: 7.75 x 11.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 17.5 x 26 mm
Height: 3.3 mm
Hands: 1.30 x 0.60 / 0.20 mm
Base: Fleurier 130

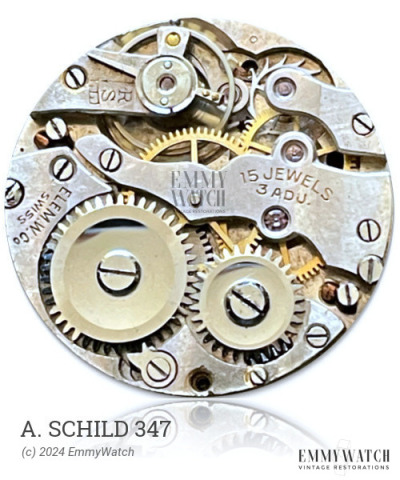

The A. Schild 347 is a mechanical watch movement featuring a manual wind and sub-second function. While there may be differences in bridge layouts between the numerically designated 130 through 149 movements, specific details regarding these variations are currently undisclosed.
The A. Schild 347 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.100 x 360 x 9.5 mm | GR3257 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
