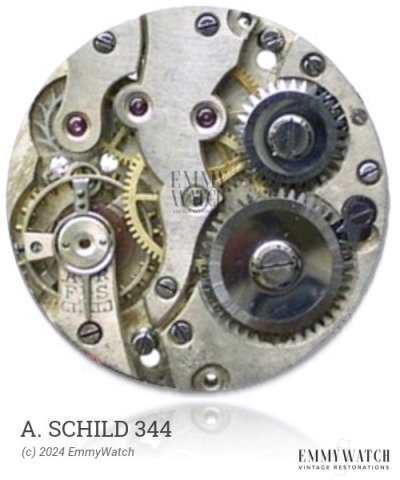

A. Schild 344
(AS, A Schild)
Ligne: 12'''
Jewels: 15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 27 mm
Height: 3.5 mm
Hands: 1.50 x 0.80 / 0.21 mm
The A. Schild 344 is a mechanical watch movement that is potentially designed specifically for Wyler's Incaflex system. It is often or always marked with the signature 1120 on the dial side. The differences between the 1120, 1122, 1124, 1126, 1128, 1130, 1132, 1138, and 1288 are not known. The A. Schild 344 movement is a manual wind movement with sub-second functionality.
The A. Schild 344 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.130 x 320 x 10.5 mm | GR4196 | Manual | Buy mainspring |
| 1.50 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
