A. Schild 324
(AS, A Schild)
Ligne: 12.75'''
Jewels: 15/17
Lift Angle: 45°
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1938
Diameter: 28.8 mm
Height: 5.25 mm
Hands: 1.30 x 0.80 mm

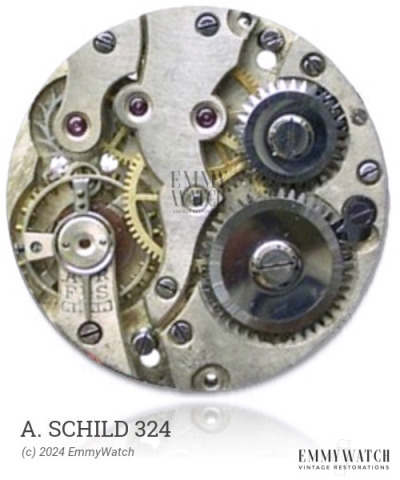

The A. Schild 324 watch movement is a manual wind mechanical movement with a sub-second function. It also features a day display, a date hand that can be set by a pusher located at 2 o'clock, and a month display set by a pusher at 4 o'clock. Developed around 1938, this movement has been utilized in watch models during that approximate period.
The A. Schild 324 features the following functions:
- Date hand: set by pusher at 2h
- Day
- Manual Winding
- Month: set by pusher at 4h
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3090 | Ordinary/None | Buy staff |
| 1529 | Ordinary/None | Buy staff |
| 3092 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.130 x 420 x 12.0 mm | GR3343 | Manual | Buy mainspring |
| 1.28 x 0.130 x 420 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
