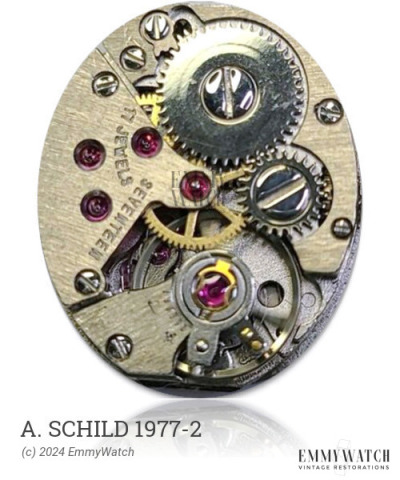

A. Schild 1977-2
(AS, A Schild)
Ligne: 17'''
Jewels: 16
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1913-1931
Diameter: 38 mm
Height: 4.2 mm
Hands: 1.65 x 0.90 / 0.15 mm
The A. Schild 1977-2 watch movement, produced between 1913-1931 with approximately 15000 units made, is a hunter calibre movement featuring a bimetallic screw balance with four adjustment screws. It is equipped with a Breguet hairspring and patented big bearings for the crown- and ratchet wheel. Additionally, it incorporates a barrel with Geneva stopwork. For further details, reference is made to the IWC 52 19'''H5 movement. The functions of the A. Schild 1977-2 movement include stem wind and set, as well as sub second display.
The A. Schild 1977-2 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.200 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CLUTCH WHEEL | 407/936 | 7319 | Buy part |
| ESCAPE WHEEL, S/S | 705/1141 | 7356 | Buy part |
| FOURTH WHEEL | 224/579 | 7355/IWC 73-74 | Buy part |
| MAINSPRING, 1.30 X .20 T-END | 770/129 | Buy part | |
| SET BRIDGE | 445/1418 | 7336 | Buy part |
| SET LEVER | 443/1235 | 7335 | Buy part |
| STAFF | 100/1852 | 7378/IWC 73 | Buy part |
| STAFF, GENUINE | 723/1012 | 7378 | Buy part |
| STEM | 200/460F | 401/IWC 73 | Buy part |
| WINDING PINION | 410/1154 | 7318 | Buy part |
