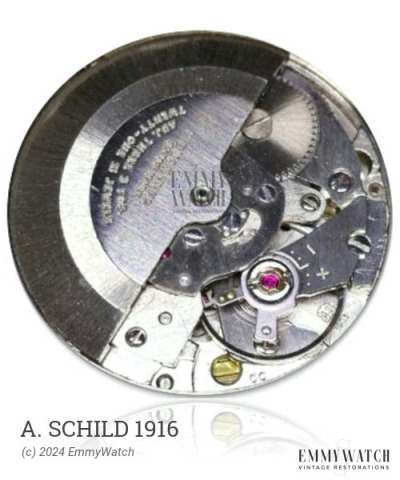

The A. Schild 1916 watch movement was produced between 1963 and 1974, with a total production of 162,000 units. It features an excenter winding mechanism and utilizes 25 jewels with ruby-rollers. The balance spokes of the movement are equipped with adjustment screws, and it utilizes a Breguet hairspring. The movement is designed with a double excenter regulator for curb pins and stud carrier. In addition, it incorporates the following functions: automatic winding, sweep seconds, date function which can be set by changing the time from 23:45 to 24:00, and the option of a hack feature. The A. Schild 1916 movement also includes automatic winding, Incabloc shock protection, sweep seconds, and a calendar feature.
The A. Schild 1916 features the following functions:
| Ronda Reference # | Shock System | Buy |
|---|
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 10.5 mm | Auto | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BARREL | 182/IWC 8541 | 182/IWC 8541 | Buy part |
| CANNON PINION, CALENDAR | A/2010 | 852122/IWC 85 | Buy part |
| SET SPRING | 440/258 | Buy part | |
| STEM | 401/1345 | 401/1345 | Buy part |
| STEM, TWO-PIECE (BOTH) | 360/215 | 360/215 | Buy part |
| SWEEP SECOND FRICTION SPRING | 471/52 | 471/52 | Buy part |
| SWEEP SECOND PINION, HT 5.38 | 275/343 | 275/343 | Buy part |
