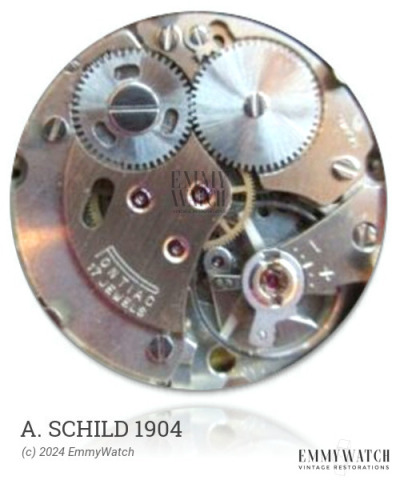

A. Schild 1904
(AS, A Schild)
Ligne: 8.75'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1920
Diameter: 19.75 mm
Height: 3.45 mm
Hands: 1.12 x 0.65 / 0.18 mm
The A. Schild 1904 watch movement is a manual wind movement with a sub-second function. It is available in both sweep seconds and non-sweep seconds variations. The movement was commonly used around 1920. There are no differences between the Buren 8.75'''new and A. Schild 1904 movements.
The A. Schild 1904 features the following functions:
- Manual Winding
- Sub Second
- Sweep seconds and non-sweep seconds variations
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.090 x 240 x 7.5 mm | GR3095 | Manual | Buy mainspring |
| 1.20 x 0.100 x 240 x 8.0 mm | GR2917 | Manual | Buy mainspring |
| 1.10 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
