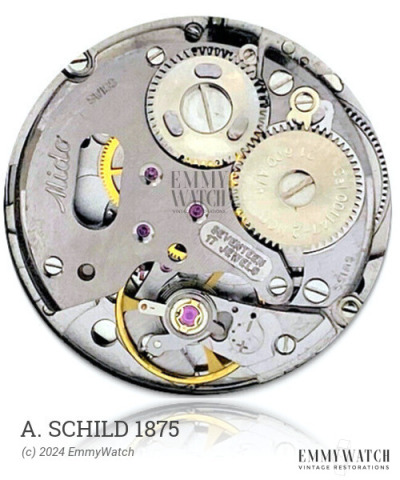

A. Schild 1875
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Hands: 2.20 x 1.30 x 0.70 / 0.21 mm
The A. Schild 1875 watch movement features various bridge shapes and incorporates a manual wind mechanism. It includes a sub-second function, as well as a day and date hand. Additionally, the movement incorporates a calendar function.
The A. Schild 1875 features the following functions:
- Calendar
- Date Hand
- Day
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2448 | Ordinary/None | Buy staff |
| 5477 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.110 x 300 x 9.0 mm | GR5155 | Manual | Buy mainspring |
| 1.70 x 0.110 x 285 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
