A. Schild 1873
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21/25/30
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1955
Diameter: 26.3 mm
Height: 6.9 mm
Hands: 1.50 x 0.90 x 0.20 / 0.20 mm

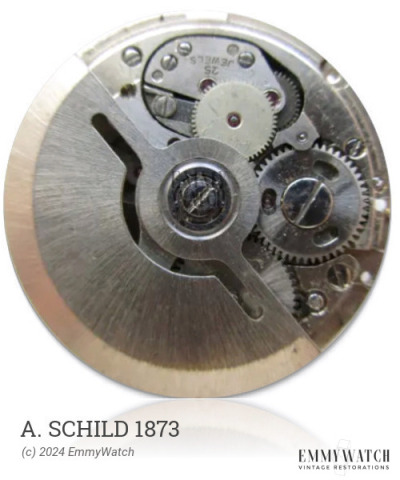

The A. Schild 1873 is a mechanical watch movement that was in use around 1955. It features an automatic winding system, a sweep second function, a date display, and a power reserve indicator with a 44-hour capacity, indicated by a hand located at the 9 o'clock position. Additionally, the movement may optionally include a Reed's regulator.
The A. Schild 1873 features the following functions:
- Automatic Winding
- Calendar
- Date
- Power reserve display 44h, hand at 9h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 350 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
