A. Schild 1860
(AS, A Schild)
Ligne: 14'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1937-1970
Diameter: 31.8 mm
Height: 6.2 mm
Hands: 1.85 x 1.30 x 0.25 / 0.27 x 0.20 mm
The A. Schild 1860 watch movement was produced between 1937 and 1970, with over 3.5 million units manufactured during this period. It featured various chrono mechanisms, and some series were produced with interchangeable parts from different calibres. The movement functioned as a manual-wind chronograph with 60 seconds, 30/45 minutes, and cam switching capabilities, along with a sub-second display.
The A. Schild 1860 features the following functions:
- Manual-wind chronograph, 60s, 30/45min, cam switched
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1225 | Ordinary/None | Buy staff |
| 5376 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.145 x 380 x 12.0 mm | GR3530 | Manual | Buy mainspring |
| 1.35 x 0.140 x 360 x 12.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

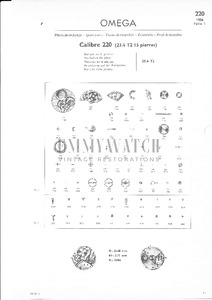

Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
