A. Schild 1801
(AS, A Schild)
Ligne: 12'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1951
Diameter: 26.6 mm
Height: 4.6 mm
Hands: 1.50 x 0.90 x 0.22 mm
Base: Felsa 396

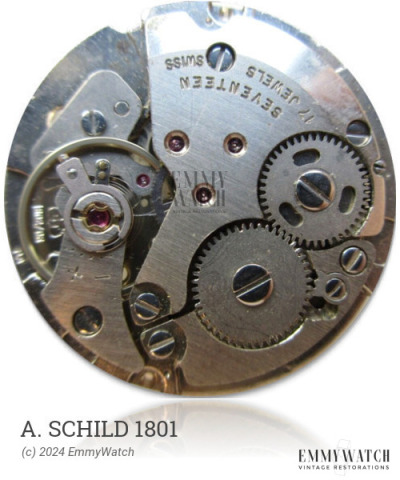

The A. Schild 1801 watch movement, introduced around 1951, is a manual wind movement featuring a sweep second hand. It is currently unknown whether the ebauches were manufactured by AM or Felsa. Detailed differences between the 394, 396, and 397 variations of this movement are not available.
The A. Schild 1801 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
