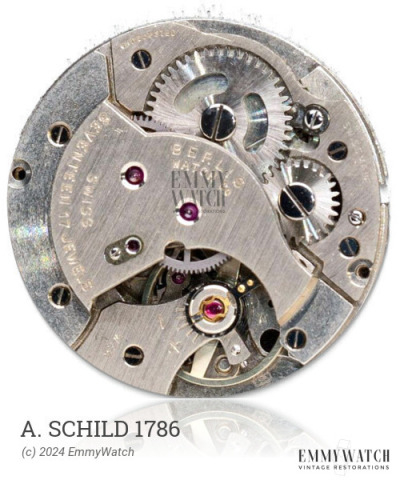

A. Schild 1786
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
The A. Schild 1786 is a manual wind mechanical watch movement with sweep second functionality. It was manufactured around 1960. It has a fixed stud carrier in early versions and a mobile stud carrier in later versions. The differences between the ETA 2391, 2393, 2395, 2397, 2399, 2401, 2403, and 2405 are not known.
The A. Schild 1786 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.115 x 320 x 9.5 mm | GR3295 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
