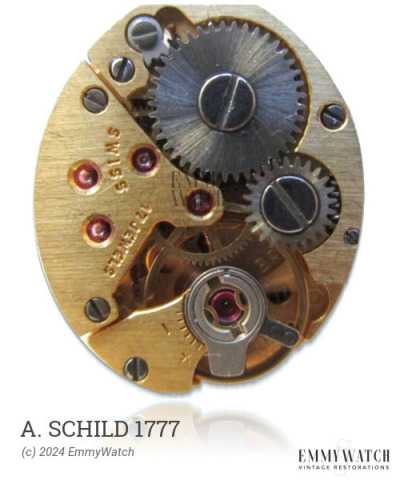

A. Schild 1777
(AS, A Schild)
Ligne: 9.5'''
Jewels: 15
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 21.3 mm
Height: 3.95 mm
Hands: 1.35 x 0.90 mm
The A. Schild 1777 watch movement is a manual wind movement with a sweep seconds function. It dates back to approximately 1945.
The A. Schild 1777 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| PALLET ARBOR 40X110X10 | 72S/93P | 714/AS 1430 | Buy part |
| ROLLER 185X90X36 | 82S/53R | Buy part | |
| STAFF | 100/463B | Buy part | |
| STEM | 200/496F | Buy part | |
| SWEEP SECOND PINION HT 6.40 | 275/154 | Buy part | |
| SWEEP SECOND WHEEL | 283/87 | Buy part |
