A. Schild 1759
(AS, A Schild)
Ligne: 8.75 x 12'''
Jewels: 15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Size: 19.1 x 26.4 mm
Height: 3.65 mm
Hands: 1.30 x 0.65 / 0.22 mm

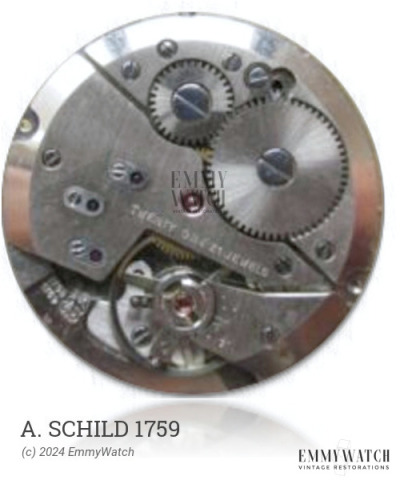

The A. Schild 1759 is a mechanical watch movement that was in use around 1935. It is a manual wind movement that features a sub-second function. Limited information is available about the specific differences between the A. Schild 1759 and its related movements, the Peseux 110, 111, 112, and 114.
The A. Schild 1759 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.115 x 380 x 11.0 mm | GR3718 | Manual | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
