A. Schild 1749
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/23
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1962
Diameter: 26 mm
Height: 5.35 mm
Hands: 1.25 x 0.70 x 0.25 mm

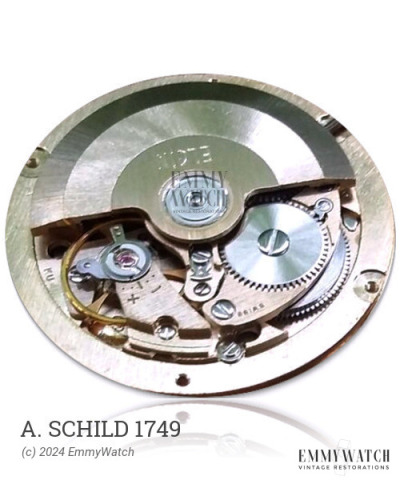

The A. Schild 1749 watch movement is a manual-winding mechanical movement equipped with a jewel-bearing rotor comprising 23 jewels. It features automatic winding capabilities, a sweep second hand, and center seconds functionality. This movement was notably utilized around 1962.
The A. Schild 1749 features the following functions:
- Automatic Winding
- Center Seconds
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.070 x 280 x 7.5 mm | Auto | Buy mainspring | |
| 1.40 x 0.075 x 260 x 7.5 mm | GR3591X | Auto | Buy mainspring |
| 1.35 x 0.080 x 220 x 7.5 mm | GR3472X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
