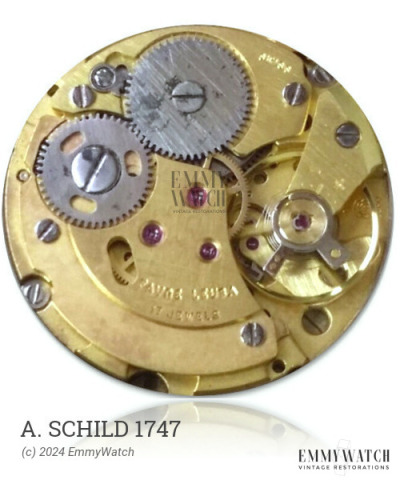

A. Schild 1747
(AS, A Schild)
Ligne: 8.75'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 19.8 mm
Height: 3.3 mm
Hands: 1.10 x 0.65 mm
The A. Schild 1747 is a manual wind mechanical watch movement that features a sub second function. It is part of a series of ETA movements, specifically the 361-367, 500, 501, and 505-509, although specific differences between these movements are not known. The A. Schild 1747 movement was commonly used in watches around the period of 1925.
The A. Schild 1747 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.085 x 240 x 7.0 mm | GR2885 | Manual | Buy mainspring |
| 1.20 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
