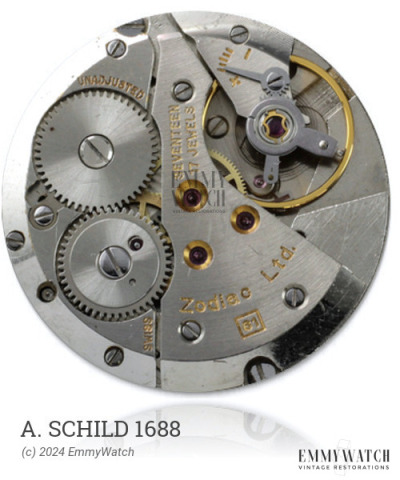

The A. Schild 1688 is an open face mechanical watch movement that was used during the period 1949-. It features a stem wind and set function, along with a sub second display. The movement incorporates a Breguet hairspring and was originally known as the Omega 38.5L T1 before being renamed Omega 160.
The A. Schild 1688 features the following functions:
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.180 x 440 x 14.5 mm | GR6058 | Manual | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BARREL | 182/807 | 1200/OME 161 | Buy part |
| BARREL ARBOR | 195/844 | 1204/OME 160 | Buy part |
| CLICK | 425/349 | 1104/OME 160 | Buy part |
| CLICKSPRING | 430/874 | 1105/OME 150 | Buy part |
| ESCAPE WHEEL, S/S | 705/903 | 1305/OME 160 | Buy part |
| MAINSPRING 12-5-17.5 | 770/19 | 1208/OME 160 | Buy part |
| PALLET ARBOR | 714/49 | 1312/OME 150 | Buy part |
| PALLET FORK & ARBOR | 710/1021 | 1316/OME 161 | Buy part |
| ROLLER | 82S/335R | 82S/335R | Buy part |
| SCREW, BALANCE BRIDGE | 5110/632 | 2007/OME 140 | Buy part |
| SCREW, DIAL SIDE | 5750/219 | 2167/OME 140 | Buy part |
| STAFF | 100/842 | 1321/OME 150 | Buy part |
| STAFF | 723/403 | 1321/OME 150 | Buy part |
| STEM | 200/674F | Buy part | |
| STEM | 401/217 | 1106/OME 150 | Buy part |
| UP BALANCE CAP JEWEL LOCK | M/1695 | 1335/OME 160 | Buy part |
