A. Schild 1685
(AS, A Schild)
Ligne: 12'''
Jewels: 1
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 27 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm

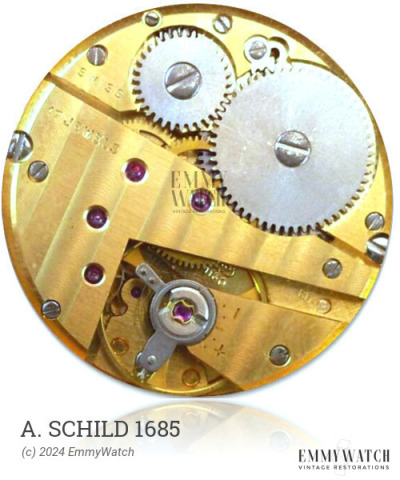

The A. Schild 1685 is a mechanical watch movement that features a pin-lever escapement. It is worth noting that the train and hand gear are driven separately by the barrel, which is an unusual design feature. This movement is capable of manual winding and includes a sweep second hand function. It was typically used around the year 1965.
The A. Schild 1685 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5200 | Ordinary/None | Buy staff |
| 5199 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
