A. Schild 1642
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 5.0 mm
Hands: 1.30 x 0.90 x 0.22 mm

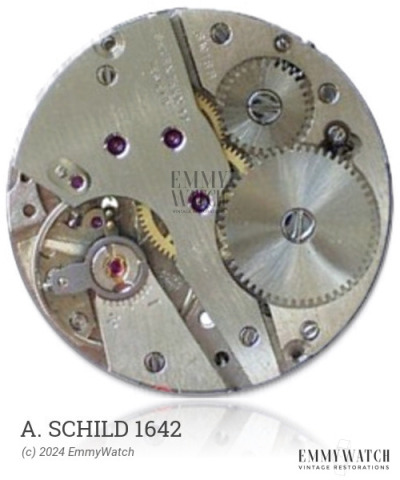

The A. Schild 1642 watch movement features a pin-lever escapement and a near-perfect imitation of balance screws. It also includes a ratchet on the dial side and a crown mechanism with a rocker bar. This movement offers manual wind functionality and includes a sweep seconds hand. It utilizes a pin lever mechanism.
The A. Schild 1642 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.80 x 0.105 x 280 x 8.5 mm | GR5265 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
