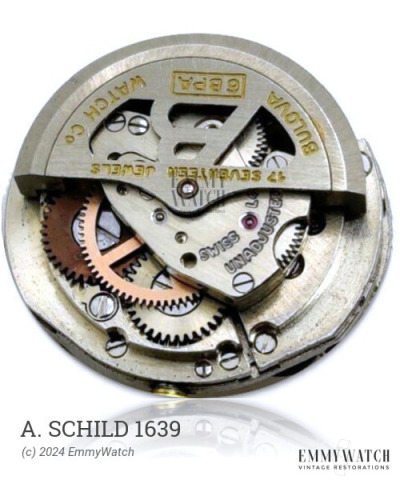

A. Schild 1639
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.1 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1716
The A. Schild 1639 watch movement, utilized around 1970, features an indirectly driven minute design that enables a substantial balance and low profile. In addition, this movement boasts automatic winding, a sweep seconds function, and a date feature that can be conveniently set by repeated pushing of the crown.
The A. Schild 1639 features the following functions:
- Automatic Winding
- Date: Quickset by repeated pushing of the crown
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.115 x 360 x 11.0 mm | GR2465X | Auto | Buy mainspring |
| 1.00 x 0.118 x 320 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
