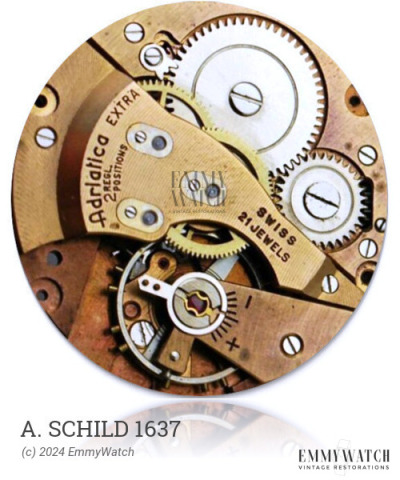

The A. Schild 1637 is a mechanical watch movement with the same designation as the 9.75''' calibre. It is a manual wind movement that features a sub-second function. The movement was commonly used around the year 1935.
The A. Schild 1637 features the following functions:
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2918 | Ordinary/None | Buy staff |
| 3106 | Supershock | Buy staff |
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
| 1.45 x 0.090 x 220 x 7.5 mm | Manual | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING, WHITE-A-LOY | 512C | Buy part | |
| PALLET ARBOR | 72S/102P | 714/FF 30 | Buy part |
| ROLLER 220X95X42 | 82S/102R | Buy part | |
| SET LEVER SPRING | M/3474 | M/3474 | Buy part |
| STAFF | 100/612 | Buy part | |
| STEM, HUB 1.35 TAP 10 OVERSIZE | 200/52F | 401/AS 984 | Buy part |
