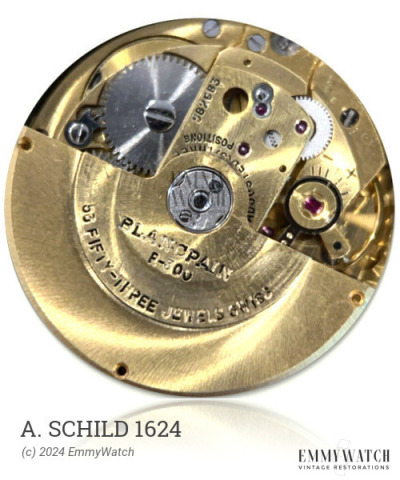

A. Schild 1624
(AS, A Schild)
Ligne: 7.75'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1965-1972
Diameter: 17.5 mm
Height: 4.65 mm
Hands: 1.20 x 0.70 x 0.20 mm
Base: ETA 2551
The A. Schild 1624 watch movement was in production from 1965 to 1972. This automatic movement features a sweep second function and a calendar function that can be set by changing the time between 21:20 and 24:00. It also includes an adjustable Stud Holder, Incabloc Shock Protection, and a sweep seconds mechanism.
The A. Schild 1624 features the following functions:
- Adjustable Stud Holder
- Automatic Winding
- Calendar
- Date: set by changing 21:20-24h
- Incabloc Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
