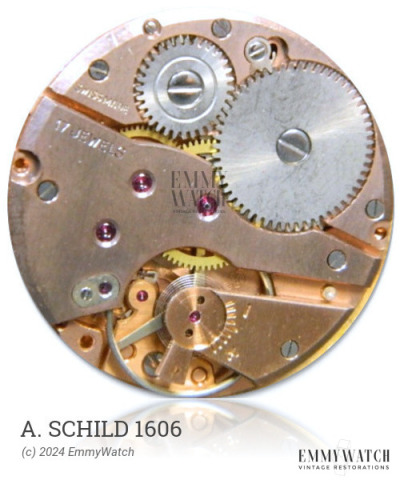

A. Schild 1606
(AS, A Schild)
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Size: 12.8 x 19.6 mm
Height: 3.8 mm
Hands: 1.10 x 0.60 mm
The A. Schild 1606 watch movement is characterized by its patented space-saving train design in two layers. Variations exist within the Fontainemelon series, including the 190, 209-211, 219, 220, 224, 226-229, 236-238, and 240 models, with specific differences currently unknown. The A. Schild 1606 movement is manually wound and was in usage approximately around 1955.
The A. Schild 1606 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.080 x 260 x 7.5 mm | GR3923 | Manual | Buy mainspring |
| 1.45 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

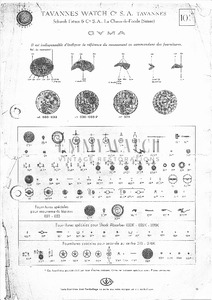

Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
