A. Schild 1589
(AS, A Schild)
Ligne: 18.5'''
Jewels: 15
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 42 mm
Height: 5.9 mm
Hands: 1.85 x 1.15 / 0.25 mm

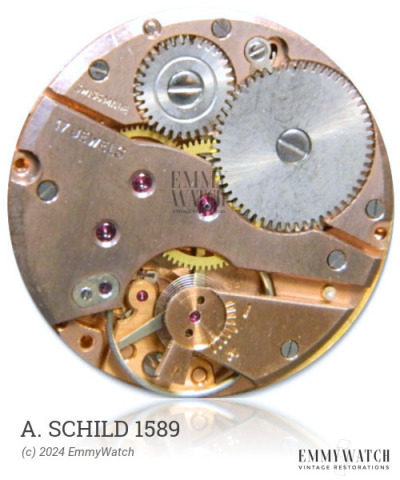

The A. Schild 1589 watch movement is an open face calibre movement with a Breguet hairspring. It features a slightly modified train bridge specifically designed for Alpina. The only noticeable difference between the A. Schild 1589 and 245 movements is the variation in alignment-pin diameters. The movement allows for stem winding and setting, as well as a sub-second function. The A. Schild 1589 movement was commonly used around 1925.
The A. Schild 1589 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.20 x 0.200 x 460 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
