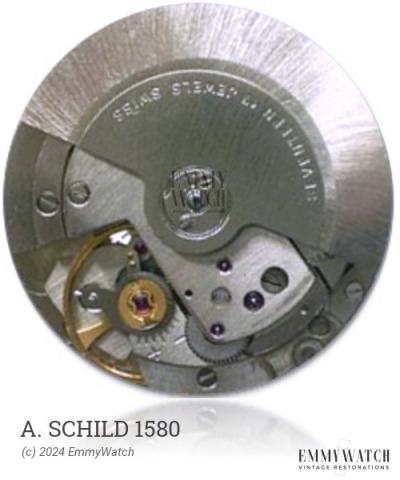

A. Schild 1580
(AS, A Schild)
Ligne: 7.75'''
Jewels: 21
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1965-
Diameter: 17.2 mm
Height: 4.15 mm
Hands: 1.20 x 0.60 mm
The A. Schild 1580 is an automatic watch movement that was introduced in 1965. Notably, it features an indirectly driven minute hand which enables a larger balance size and a low profile design.
The A. Schild 1580 features the following functions:
- Automatic Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.085 x 7.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
