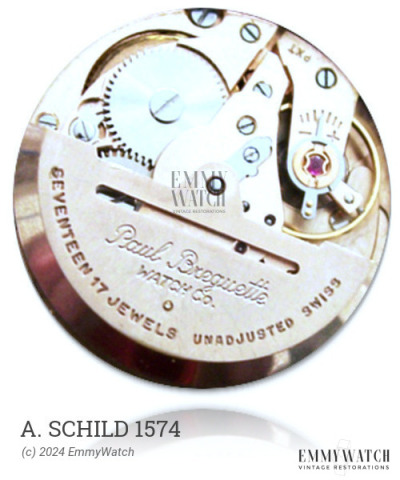

A. Schild 1574
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21/25
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1942-
Diameter: 26.3 mm
Height: 6.65 mm
Hands: 1.50 x 0.90 x 0.20 mm
The A. Schild 1574 watch movement is a calibre family that was introduced in 1942. It features a bidirectional rotor winding system, allowing for automatic winding of the watch. An optional Reed's regulator is also available. The movement offers several functions including sweep seconds, date display, and calendar. The A. Schild 1574 has been in use since 1942.
The A. Schild 1574 features the following functions:
- Automatic Winding
- Calendar
- Date
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.110 x 340 x 10.0 mm | GR3984X | Auto | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
