A. Schild 1542
(AS, A Schild)
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1894-1898
Diameter: 45.75 mm
Height: 10.1 mm
Hands: 2.46 x 1.27 / 0.30 mm

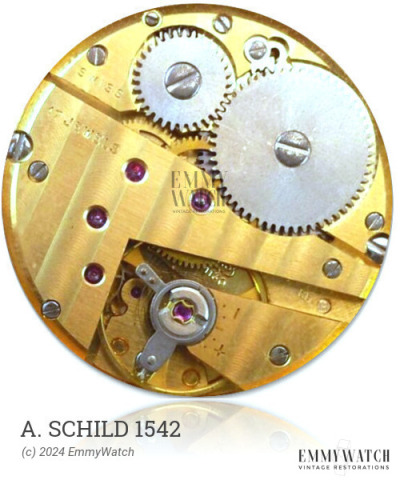

The A. Schild 1542 watch movement, produced between 1894-1898, encompasses a total of 33,000 units. This open face caliber, known as model 5, features a bimetallic screw balance and Breguet hairspring. Notably, it incorporates a ratchet under the base plate and employs a negative stem mechanism with a rocker bar. Additionally, this movement offers stem winding functionality, allowing for switching between crown and lever, as well as sub-second indication.
The A. Schild 1542 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.90 x 0.230 x 540 x 18.0 mm | DBH | Buy mainspring |
Parts Listing
