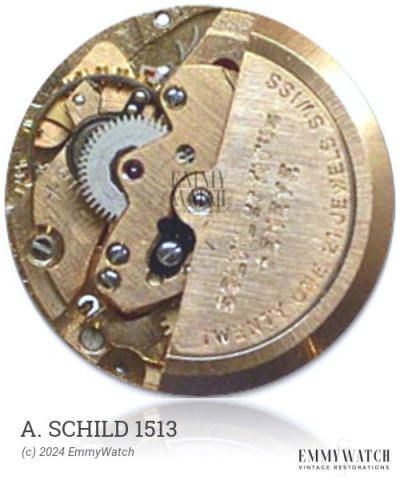

A. Schild 1513
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/25
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1955-
Diameter: 26 mm
Height: 5.2 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1580
The A. Schild 1513 watch movement is a detached manual wind mechanism that features automatic and sweep second functions. This movement was introduced in 1955 and has been utilized since then.
The A. Schild 1513 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 340 x 10.0 mm | GR2922X | Auto | Buy mainspring |
| 1.20 x 0.105 x 340 x 10.0 mm | GR2937X | Auto | Buy mainspring |
| 1.20 x 0.100 x 315 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ARBOR,PALLET S/C PVT 40X135X11 | 72S/250P | 715/AS 1580 | Buy part |
| BALANCE COMPLETE | 721/741 | Buy part | |
| BARREL ARBOR, TIME KEY | 195/21 | Buy part | |
| MAINSPRING 1.20-.105-340 10 | MSS-WA32 | GR 2937-X | Buy part |
| ROLLER 180X75X36 | 82S/40R | 730/31 | Buy part |
| ROLLER, INCABLOC 180X75X36 | 82S/147R | 730/AS 1649 | Buy part |
| STAFF | 100/1615 | Buy part | |
| STEM | 200/275F | Buy part | |
| STEM, FEMALE | 360/256 (use 360/264) | 360/256 | Buy part |
