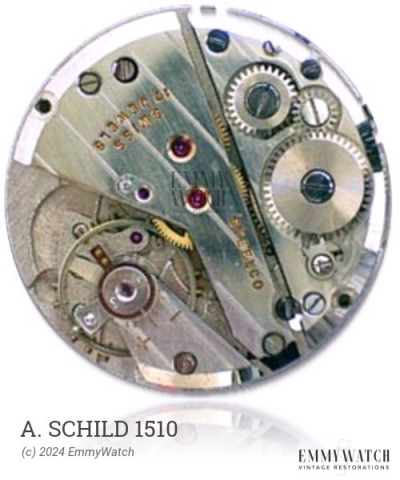

A. Schild 1510
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 24.1 mm
Height: 4.35 mm
Hands: 1.30 x 0.85 x 0.23 mm
The A. Schild 1510 watch movement is a manual wind mechanical movement with a sweep second function that was used around 1955. There are no known differences specified between the R23, R23A, and R23B variations of this movement. Additional technical details or features of the movement have not been provided.
The A. Schild 1510 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5022 | Ordinary/None | Buy staff |
| 5022 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 300 x 9.0 mm | GR4149 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
