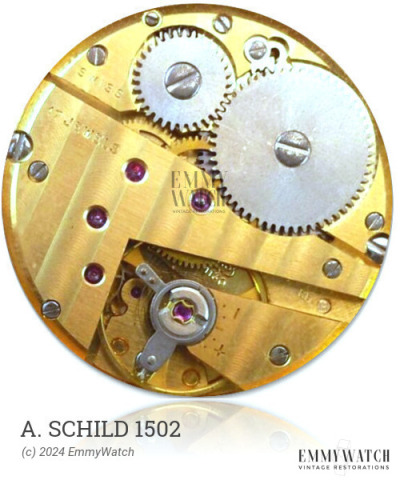

A. Schild 1502
(AS, A Schild)
Ligne: 12'''
Jewels: 1/17
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 27 mm
Height: 4.8 mm
Hands: 1.80 x 1.30 x 0.20 mm
The A. Schild 1502 is a mechanical watch movement featuring a pin-lever escapement and a stem mechanism without a setting-lever spring. Notably, the train and hand gear are peculiarly driven separately by the barrel. Its functions include manual wind, sweep seconds, day setting with a range of +/-24 hours, quickset date with reverse setting, and a day-date display. The movement employs a pin-lever system and was widely used during the approximate period of 1970.
The A. Schild 1502 features the following functions:
- Date: quickset by reverse setting
- Day and Date Display
- Day: set by +/- 24h
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5200 | Ordinary/None | Buy staff |
| 5199 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700 | Manual | Buy mainspring |
| 1.40 x 0.115 x 320 x 9.5 mm | GR3715 | Manual | Buy mainspring |
| 1.40 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

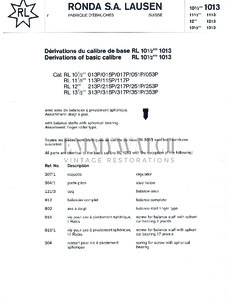

Parts Listing
