A. Schild 1453
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1948
Diameter: 23.65 mm
Height: 4.1 mm
Hands: 1.32 x 0.72 / 0.20 mm
The A. Schild 1453 watch movement, manufactured around 1948, is a manual wind movement with a sub-second function. It features a bimetallic screw balance and is equipped with a Breguet hairspring.
The A. Schild 1453 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.090 x 340 x 10.5 mm | GR4467T | T | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING, 7X11.5X14 TEE | MSS-WL6 | Buy part | |
| STAFF, NON-SHOCK | 100/505 | Buy part | |

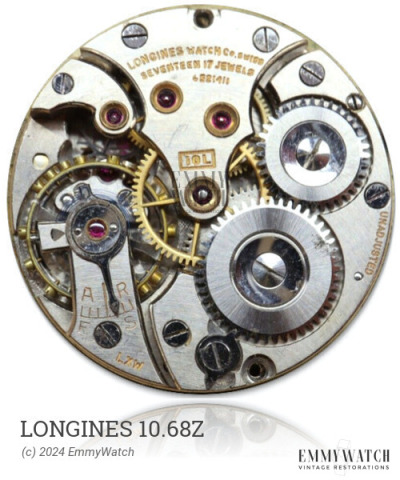

| WINDING PINION | 410/LON 10.68Z | Buy part |
