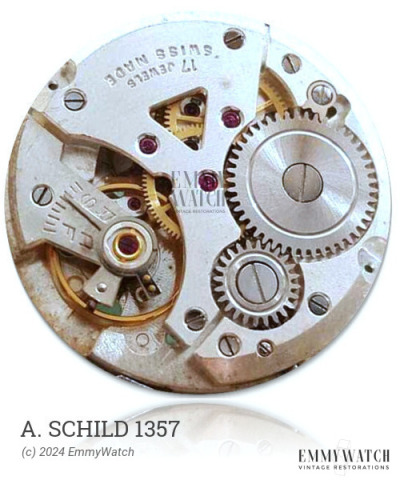

A. Schild 1357
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 23.3 mm
Height: 2.9 mm
Hands: 1.30 x 0.80 / 0.22 mm
The A. Schild 1357 watch movement is a flatter version of the A Michel 280 movement. It features a manual wind mechanism and a sub-second function. The movement was commonly used around 1936.
The A. Schild 1357 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 280 x 8.5 mm | GR3252 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
