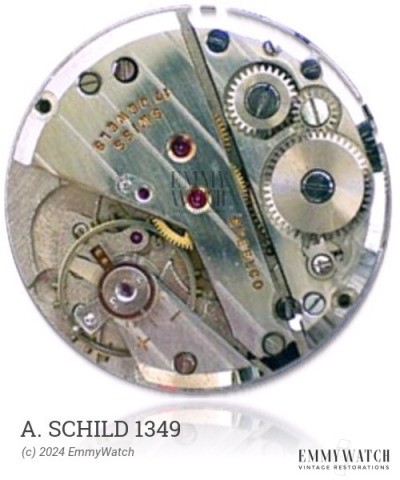

A. Schild 1349
(AS, A Schild)
Ligne: 5.25 x 6.75'''
Jewels: 17
Lift Angle: 54°
Power Reserve: 48 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: 1954-1971
Size: 11.7 x 15 mm
Height: 3.25 mm
Hands: 1.00 x 0.50 mm
The A. Schild 1349 watch movement was produced by IWC from 1954 to 1971, with a total of 48,000 units manufactured. It is the smallest calibre produced by IWC during that period. The movement is designed for manual winding.
The A. Schild 1349 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
