A. Schild 1267
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1968-
Diameter: 26 mm
Height: 3.1 mm
Hands: 1.40 x 0.80 / 0.20 mm

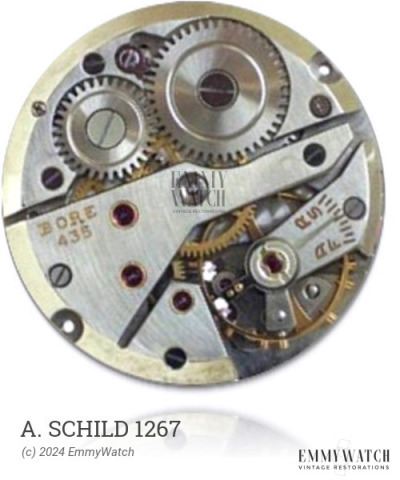

The A. Schild 1267 is a manual wind mechanical watch movement with sub-second functionality. It was introduced in 1968 and has been used in timepieces since then.
The A. Schild 1267 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5281 | Ordinary/None | Buy staff |
| 5281 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.115 x 300 x 9.5 mm | GR3139 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
