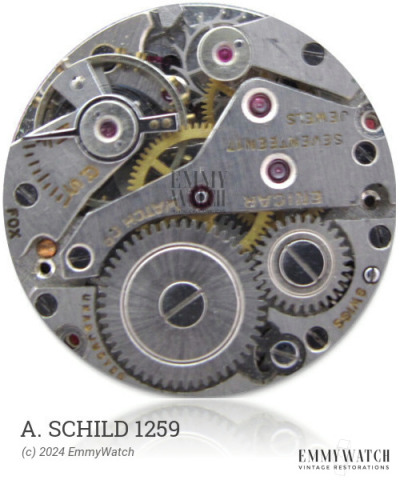

A. Schild 1259
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.20 mm
The A. Schild 1259 is a manual wind watch movement that features a sweep second function and a date display which is set by changing the 21-24 hour. It is equipped with an adjustable stud holder and shock protection. The movement is categorized by its sweep seconds and was commonly used around 1965.
The A. Schild 1259 features the following functions:
- Adjustable Stud Holder
- Date: set by changing 21-24h
- Manual Winding
- Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 320 x 9.0 mm | GR4880 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
