A. Schild 1217
(AS, A Schild)
Ligne: 5.5 x 7'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.2 x 15.85 mm
Height: 3.5 mm
Hands: 1.00 x 0.55 mm

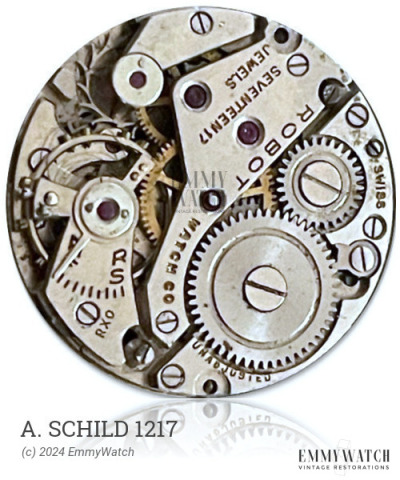

The A. Schild 1217 is a mechanical watch movement utilized for manual winding. It was commonly employed during the approximate period of 1945. No further information is currently available regarding the specific distinctions or similarities between the A. Schild 1217 and the other mentioned watch movements, including the 976, 986, 990, 1022, 1057, 1079, 1246, 1273, 1406, 1467, 1482.
The A. Schild 1217 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.065 x 220 x 6.0 mm | GR3568 | Manual | Buy mainspring |
| 1.40 x 0.060 x 210 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
