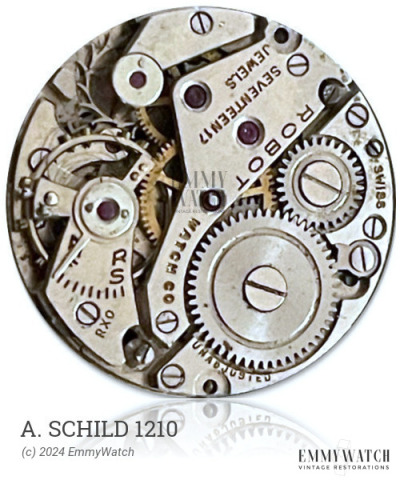

A. Schild 1210
(AS, A Schild)
Ligne: 12.25'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1966
Diameter: 28.1 mm
Height: 4.45 mm
Hands: 1.50 x 0.90 x 0.20 mm
The A. Schild 1210 watch movement is a mechanical movement widely comparable to the Seiko 6602B. It was developed and sold by Seiko specifically as a bare movement. The movement features a stem mechanism without a setting-lever spring and utilizes Seiko-Diafix combined settings for the escapement wheel. The A. Schild 1210 movement includes several functions, including manual-winding, sweep second, and a date feature that can be set by changing the time to 21:30-24h. It was commonly used during the approximate period of 1966.
The A. Schild 1210 features the following functions:
- Date: set by changing 21:30-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.115 x 340 x 10.0 mm | GR3296 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
