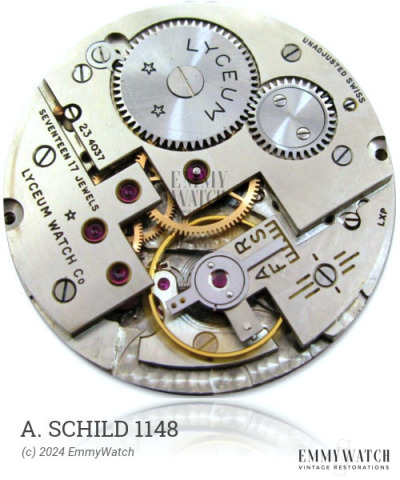

A. Schild 1148
(AS, A Schild)
Ligne: 7.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1967-1972
Diameter: 17.5 mm
Height: 3.3 mm
Hands: 1.20 x 0.70 x 0.20 mm
The A. Schild 1148 is a manual wind mechanical watch movement that was utilized between the years 1967 and 1972. It is similar to the ETA 2540, with the specific differences between the two movements remaining unknown. The A. Schild 1148 features a sweep second hand, allowing for accurate timekeeping.
The A. Schild 1148 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 260 x 7.5 mm | GR3203 | Manual | Buy mainspring |
| 1.30 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
