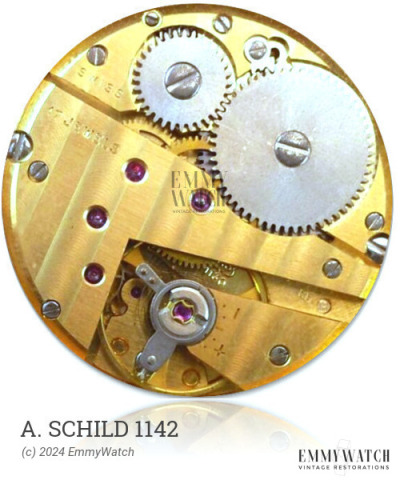

A. Schild 1142
(AS, A Schild)
Ligne: 11.5'''
Jewels: 15
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 26 mm
Height: 5.85 mm
Hands: 1.90 x 1.40 x 0.70 / 0.22 mm
Base: ETA 930
The A. Schild 1142 watch movement is based on a modified ETA base plate, which is signed as ETA 900. Limited information is available regarding the differences between the CE4 and CE14 versions of this movement. The CE14 movement features a manual winding mechanism and a sub-second function. Additionally, it offers a day indicator that can be set by changing the time between 20:15 and 24:00 in a 24-hour format, as well as a date hand that can be quickly adjusted by repeatedly pushing the crown. This movement is believed to have been used around the 1950s.
The A. Schild 1142 features the following functions:
- Date hand: quickset by repeated pushing the crown
- Day: set by changing 20:15-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
