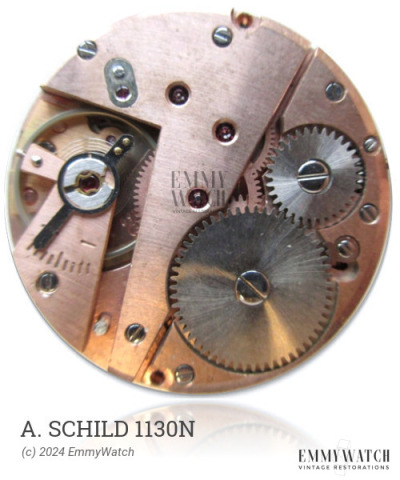

A. Schild 1130N
(AS, A Schild)
Ligne: 17'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 38.35 mm
Height: 4.15 mm
Hands: 1.80 x 1.00 / 0.28 mm
The A. Schild 1130N is an open face calibre movement, sharing many similarities with other watch movements such as the 1063, 1064, 1071, 1080, and 1121. It features stem winding and setting, a sub-second function, and right setting. The A. Schild 1130N movement was commonly used during the period around 1940.
The A. Schild 1130N features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.160 x 460 x 14.0 mm | GR5031 | Manual | Buy mainspring |
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
