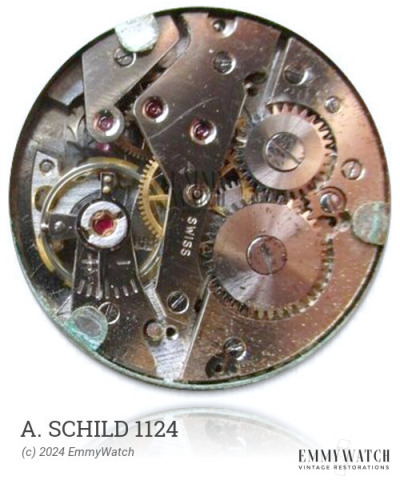

A. Schild 1124
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.3 mm
Hands: 1.50 x 0.90 mm
The A. Schild 1124 is a manual wind watch movement that includes a sweep seconds function. Developed around 1945, it belongs to a series of movements which includes the 290-1, 309-1, and 330, although the specific differences between them are currently unknown.
The A. Schild 1124 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 949 | Ordinary/None | Buy staff |
| 4919 | Ordinary/None | Buy staff |
| 1001 | Incabloc | Buy staff |
| 3299 | Kif | Buy staff |
| 3188 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 340 x 9.5 mm | GR4124 | Manual | Buy mainspring |
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
