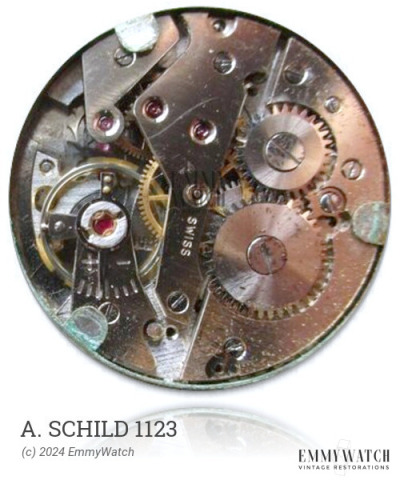

A. Schild 1123
(AS, A Schild)
Ligne: 5.75 x 6.75'''
Jewels: 17
Power Reserve: 37 hrs
Frequency: 28800 vph
Type: Manual Wind
Period used: 1974-1977
Size: 13 x 15.15 mm
Height: 3.1 mm
Hands: 1.00 x 0.45 mm
The A. Schild 1123 is a manual wind watch movement that was available between 1974-1977. It features an Adjustable Stud Holder and Incabloc Shock Protection.
The A. Schild 1123 features the following functions:
- Adjustable Stud Holder
- Incabloc Shock Protection
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
