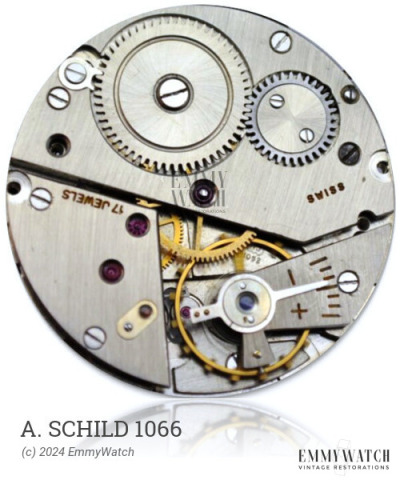

A. Schild 1066
(AS, A Schild)
Ligne: 13.5'''
Jewels: 1
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 31.2 mm
Height: 4.85 mm
Hands: 1.90 x 1.10 mm
The A. Schild 1066 watch movement features a pin-lever escapement and an indirect minute hand friction clutch on the barrel. Its stem mechanism operates without a setting-lever spring. This movement is manually wound and includes a sub-second function. It utilizes a pin lever mechanism and was commonly used during the period around 1970.
The A. Schild 1066 features the following functions:
- Manual Winding
- Pin lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
