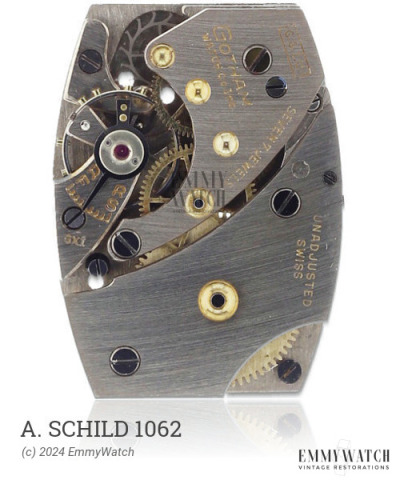

A. Schild 1062
(AS, A Schild)
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Size: 15.2 x 18 mm
Hands: 1.00 x 0.58 mm
Base: Bidlingmaier 691
The A. Schild 1062 watch movement is a manual wind movement that was commonly used around 1965. It shares similarities with the 2001 and 2002 movements, although precise differences are not currently known.
The A. Schild 1062 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
