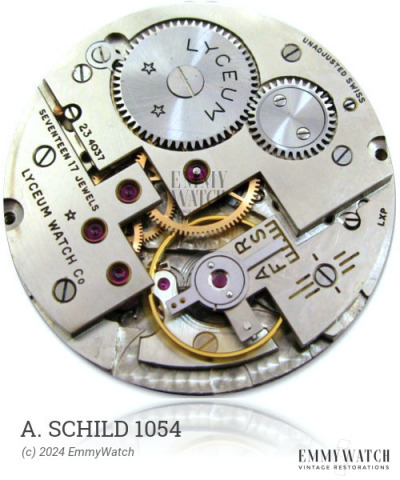

A. Schild 1054
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Hands: 1.30 x 0.70 / 0.22 mm
The A. Schild 1054 watch movement is a manual wind movement that features a sub second function. It also includes a day function and a calendar function with the date set by a pusher at 2 o'clock. While the differences between the 1355 and 1355N are not known, these are the main functions associated with the A. Schild 1054 movement.
The A. Schild 1054 features the following functions:
- Calendar
- Date: Set by pusher at 2h
- Day
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
| 1.60 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.105 x 280 x 8.5 mm | GR4502 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
