A. Schild 1032
(AS, A Schild)
Ligne: 5.75 x 6.75'''
Jewels: 17
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Size: 13 x 15.6 mm
Height: 3.55 mm
Hands: 1.00 x 0.55 mm
Base: A. Schild 1677

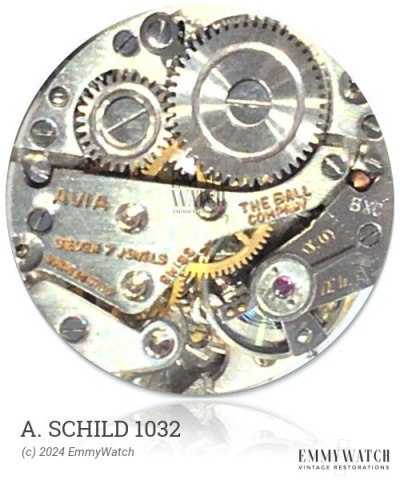

The A. Schild 1032 watch movement is based on either the AS 1012 or AS 1582 movement. It features a manual wind system and incorporates the escapement, stem, and barrel from Alpina. The specific differences between the 471 and 472 variants are not known. Notably, the movement includes Incabloc Shock Protection. The A. Schild 1032 movement was used during the period approximately around 1960.
The A. Schild 1032 features the following functions:
- Incabloc Shock Protection
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
