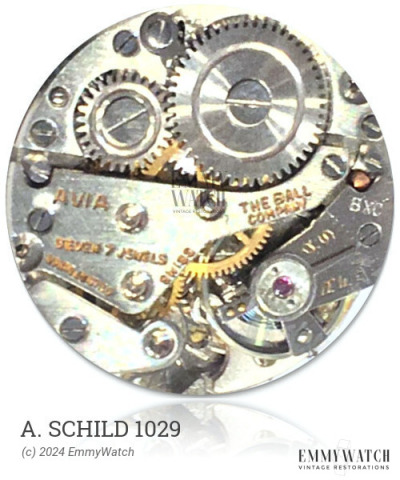

A. Schild 1029
(AS, A Schild)
Ligne: 6'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 13.75 mm
Height: 3.15 mm
Hands: 1.00 x 0.50 mm
Base: Felsa 21
The A. Schild 1029 mechanical watch movement is characterized by its early fixed or later mobile stud carrier. The specific differences between the Felsa 21 and A. Schild 1029 movements are not known. This movement is primarily designed for manual winding.
The A. Schild 1029 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.060 x 160 x 5.5 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 160 x 5.0 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 145 x 5.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
